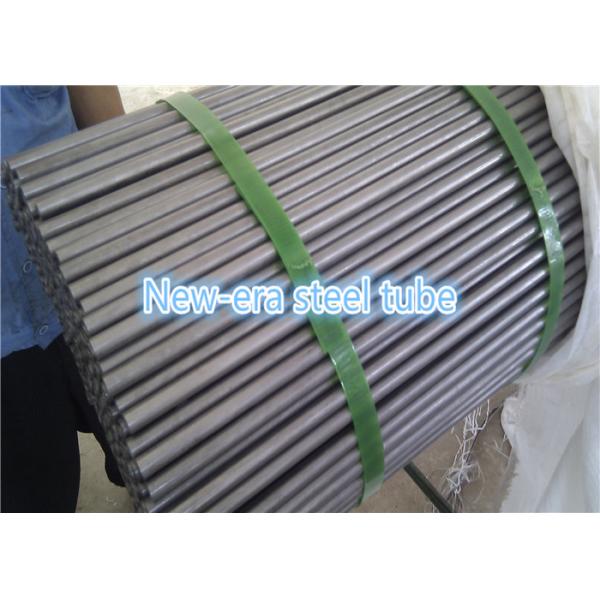

EN10305-4 Precision Steel Tube Seamless cold drawn tubes for hydraulic and pneumatic power systems
Quick Detail:
EN10305-4 Precision Steel Tube
Seamless cold drawn tubes for hydraulic and pneumatic power systems
Applications:
for Auto industry/for machinery use/Oil Cylinder Tube/Motorcycle shock absorber
Auto shock absorber inner cylinder/Telescopic Cylinders
Size range: O.D.:6-420mm W.T.:1-50mm L:max12000mm
Production: Cold Drawn + Cold Rolling
Steel Grade and Chemical Compositions:
| Steel Grade | C | Si | Mn | P | S | Al |
| Steel Name | Steel Number | max | max | max | max | max | min |
| E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
| E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
| Mechanical properties at room temperature |
| Steel Grade | Minimum values for the delivery condition |
| Steel Name | Steel Nubmer | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) NBK |
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % |
| E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
| E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
| E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
FAQ:
1. Can you provide a sample to check the quality?
We can provide free sample with same or similar sizes for you to check tube quality.
You need to in charge of Express costs.
2. How about your production capacity?
3000 tons/Month.
3. What are your terms of payment?
30%TT in advance, Balance to be paid before shipment.
4. Where is your factory?
Jiaxing city, 2 hours away from Shanghai.
5. How can I get the quotation A.S.A.P?
Please send us an inquiry with full details as following,quotation will sent to you A.S.A.P:
1). Tube Standard
2). Steel Grade
3). Tube Size and Size Tolerance
4). Tube length
5). Quantity
6). If any special requirements
6. How about the minimum order quantity?
Normally for one size above 1 ton.
Welcome to contact us! Thanks.
Tags: EN10305-4 Preicision Steel Tube, Hydraulic Steel Tube, Cold Drawn Steel Tube, EN10305-4 Cold Drawn Tube, Seamless Steel Tube, Steel Tube.
